1.8 Home bar

1.8 Home bar

Home Bar

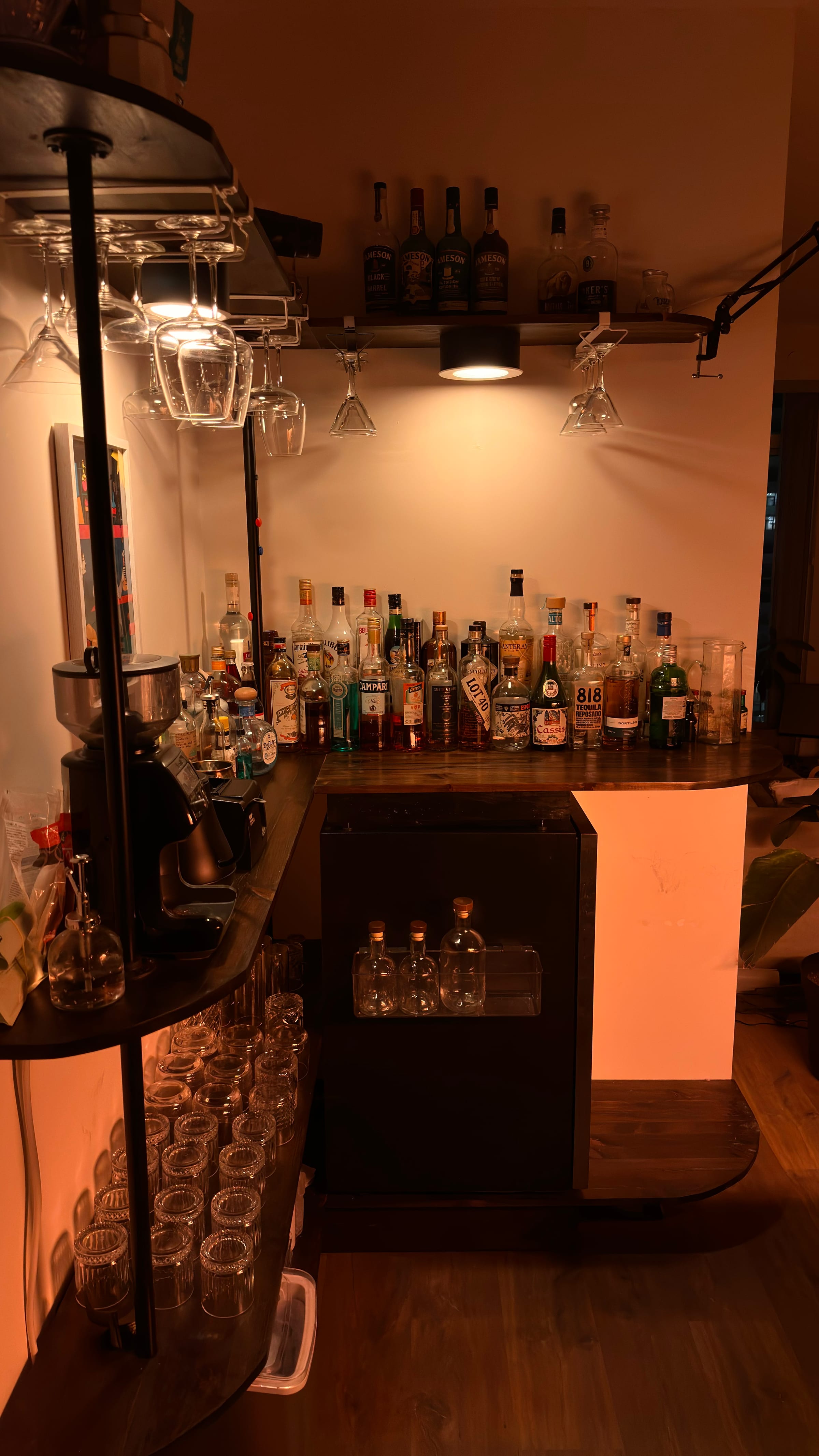

Home bar — side A

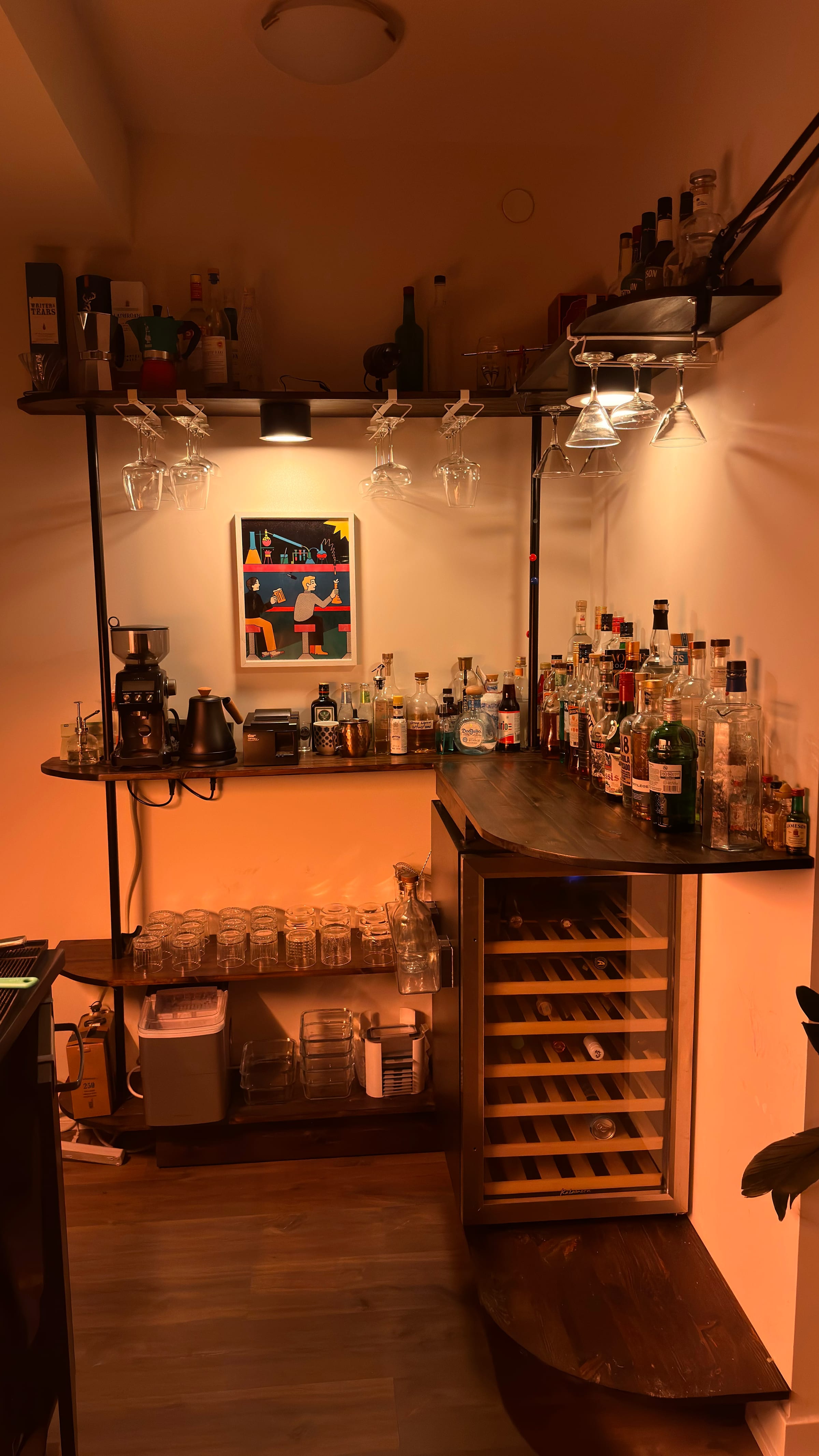

Home bar — side B

Design & planning

Decisions before the first cut

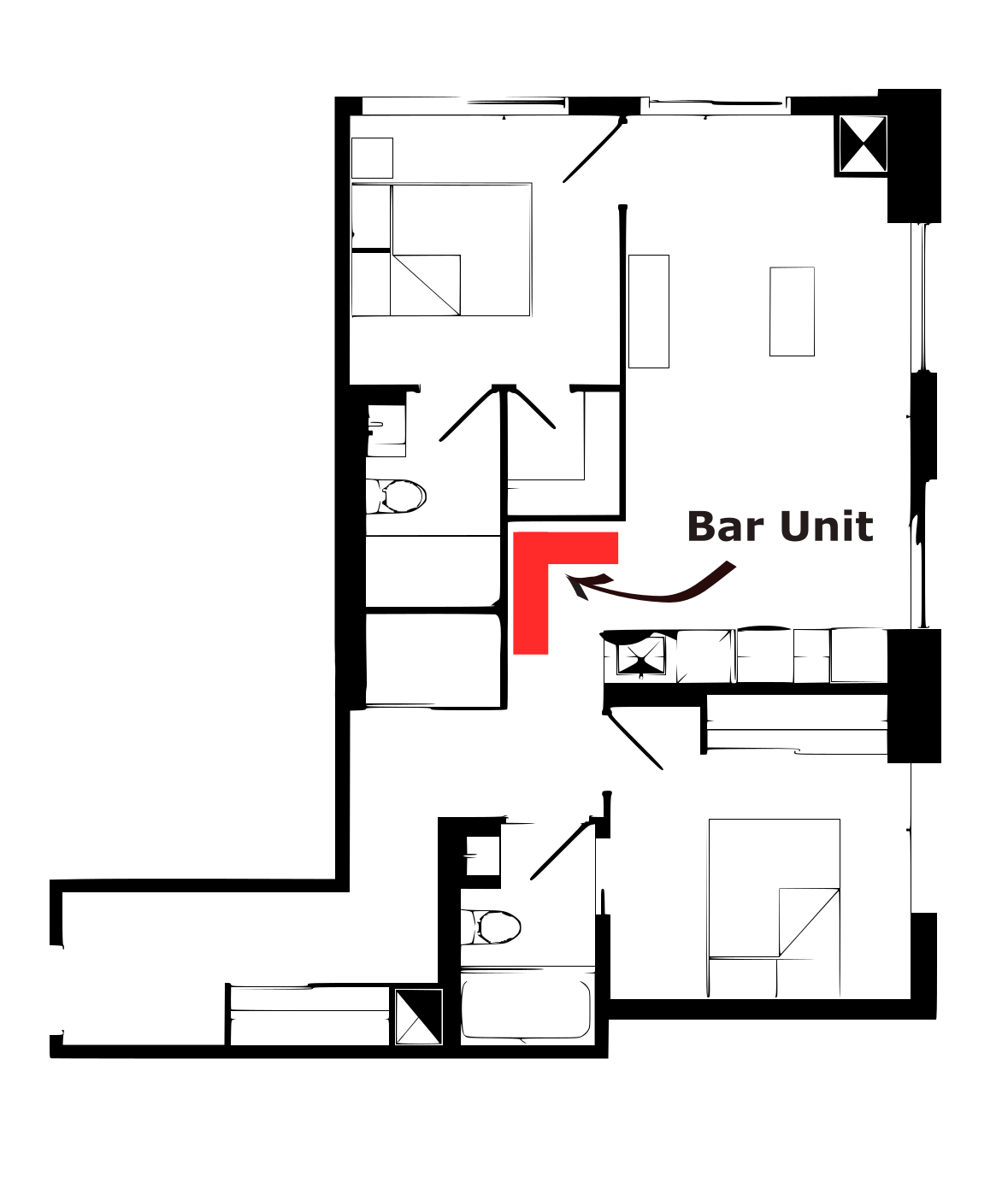

Apartment floor plan showing the bar's position along the living-room wall
Apartment layout

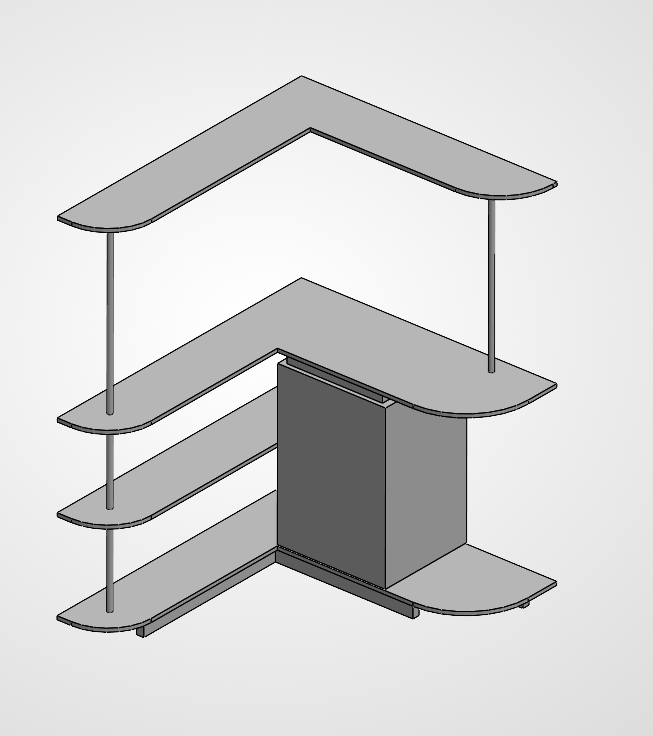

SolidWorks model showing bar dimensions, shelf layout, and joinery details
SolidWorks model

The build

Cutting & sanding

Cutting and sanding — step 1

Rounding the corners.

Cutting and sanding — step 2

Cutting the pieces to size.

Cutting and sanding — step 3

Sanding the wood.

The build

Gluing pieces together

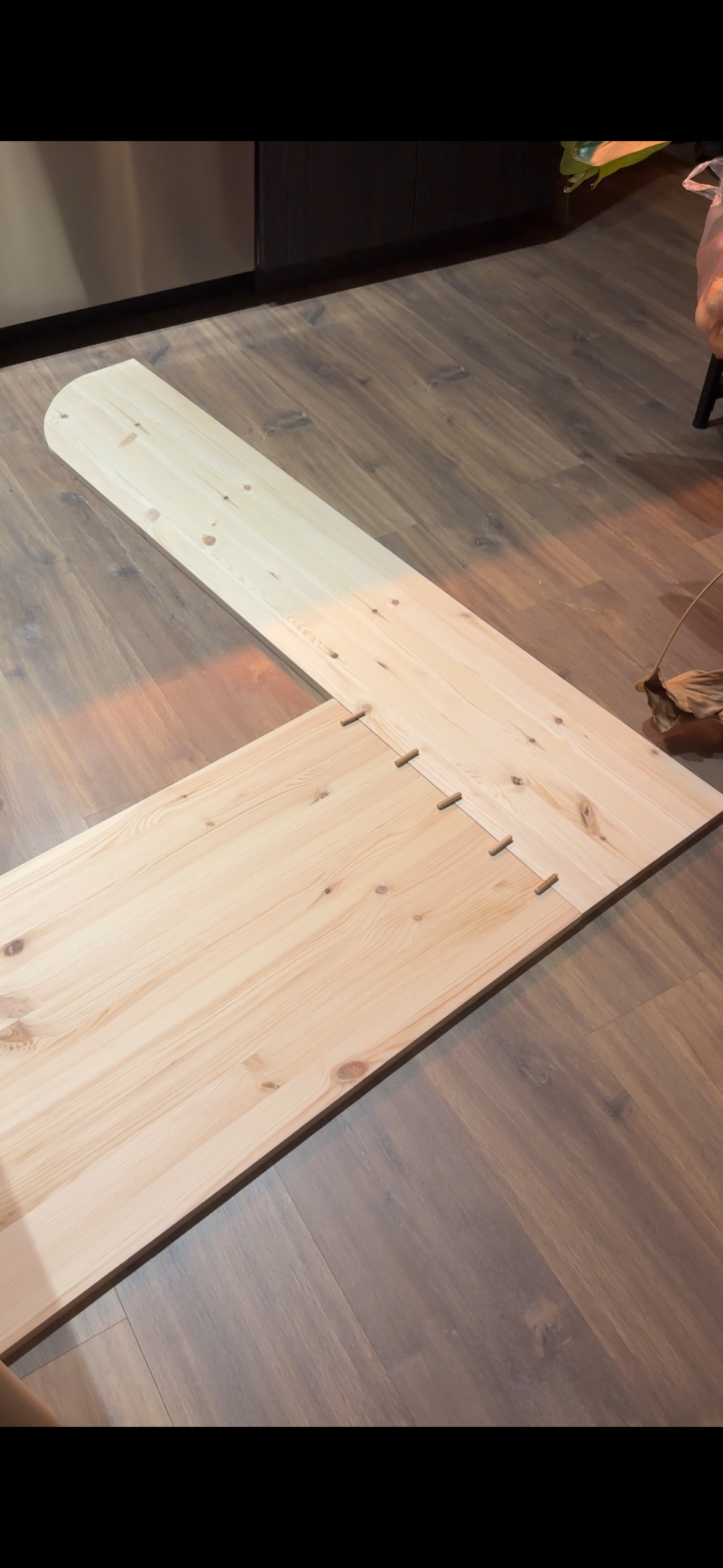

Gluing — step 4

Layout for the joint.

Gluing — step 5

Drilling holes for dowels.

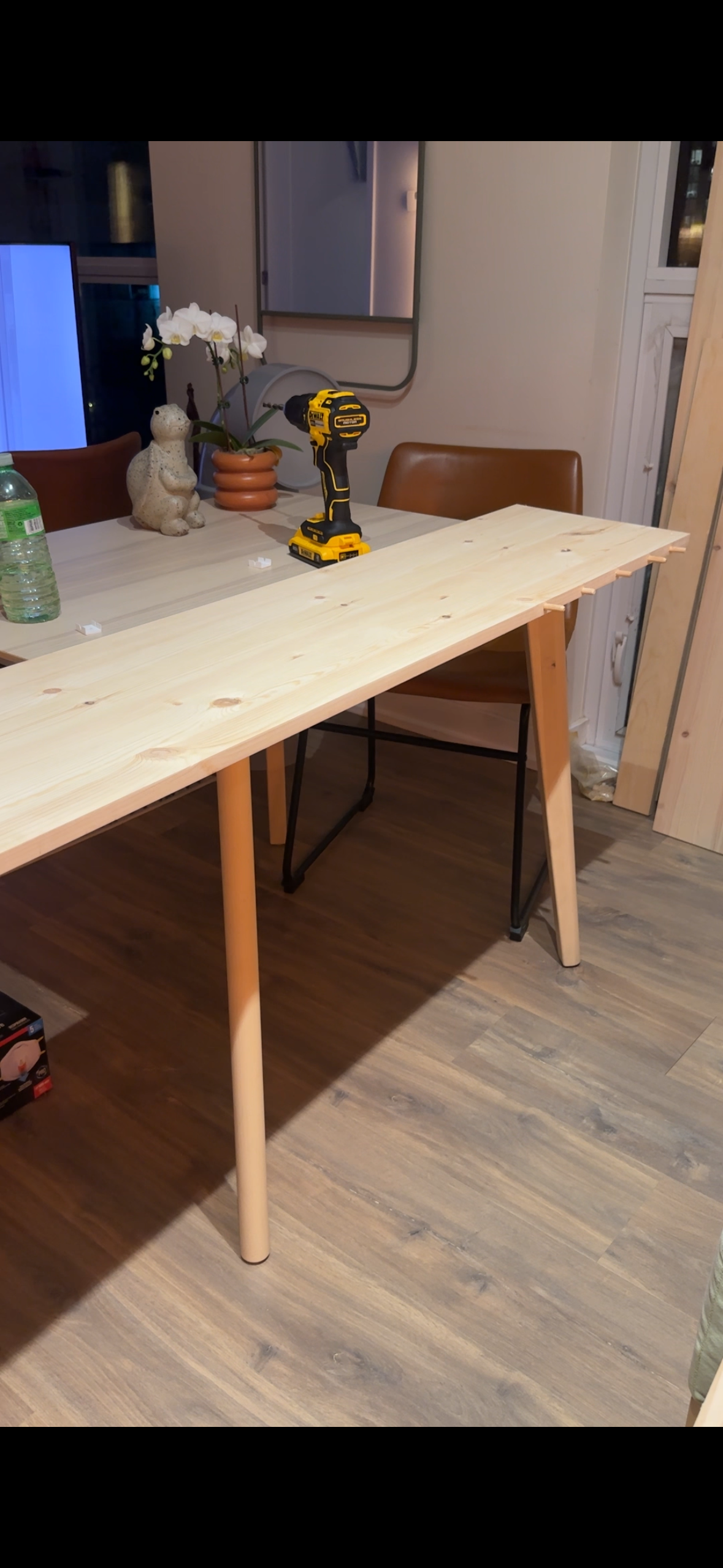

Gluing — step 6

Inserted dowels.

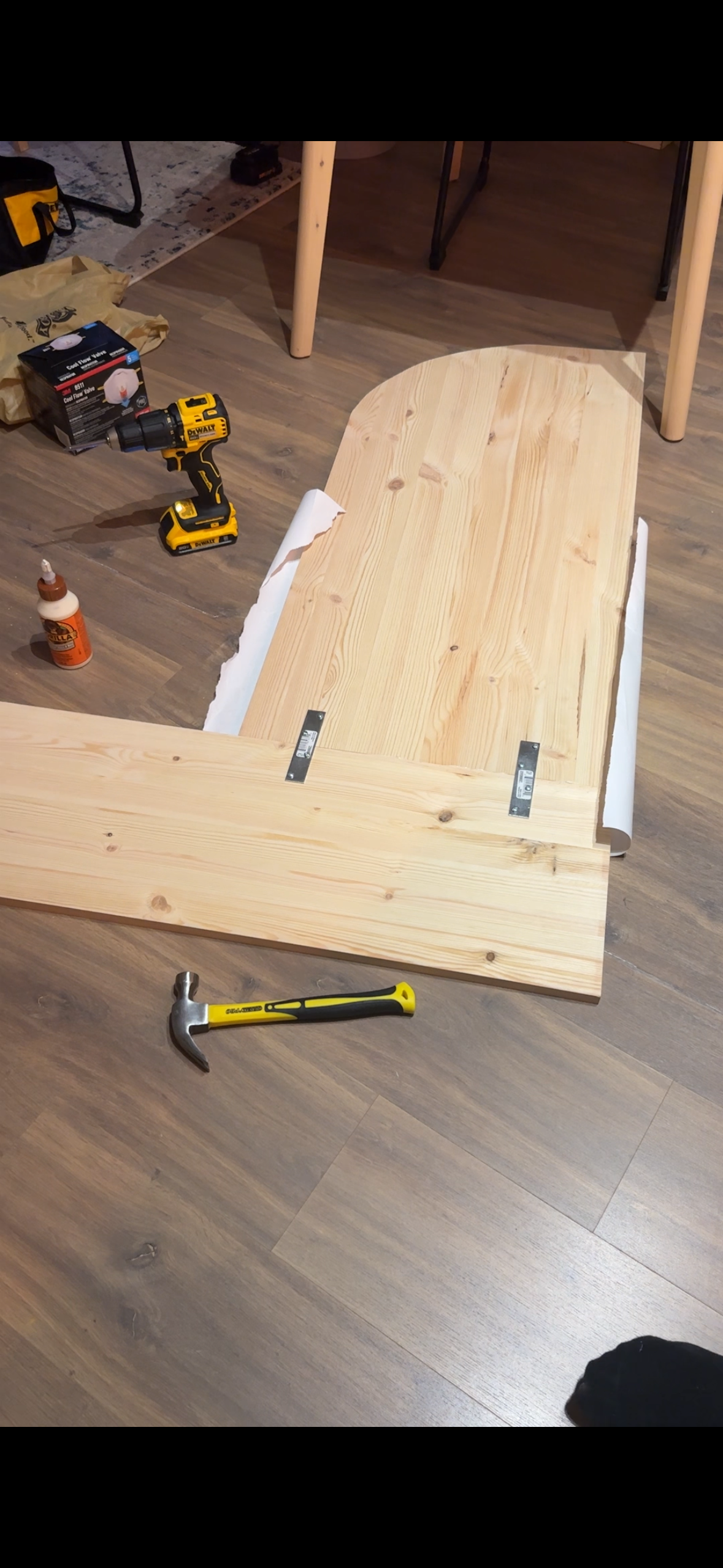

Gluing — step 7

Glued pieces with a bracket added for extra support.

Assembly

Putting it together

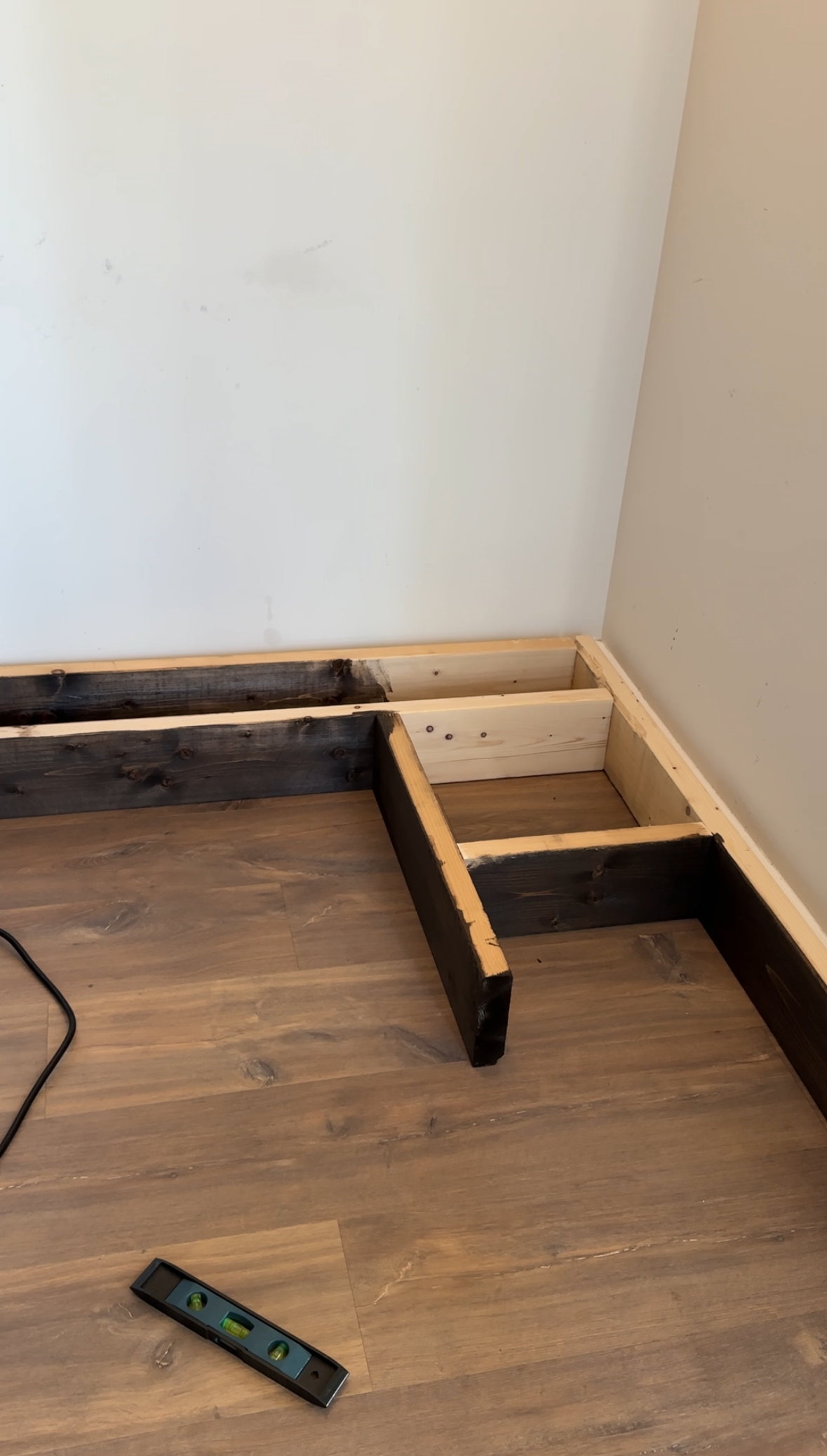

  1. Assembly step 1

    Base in place.

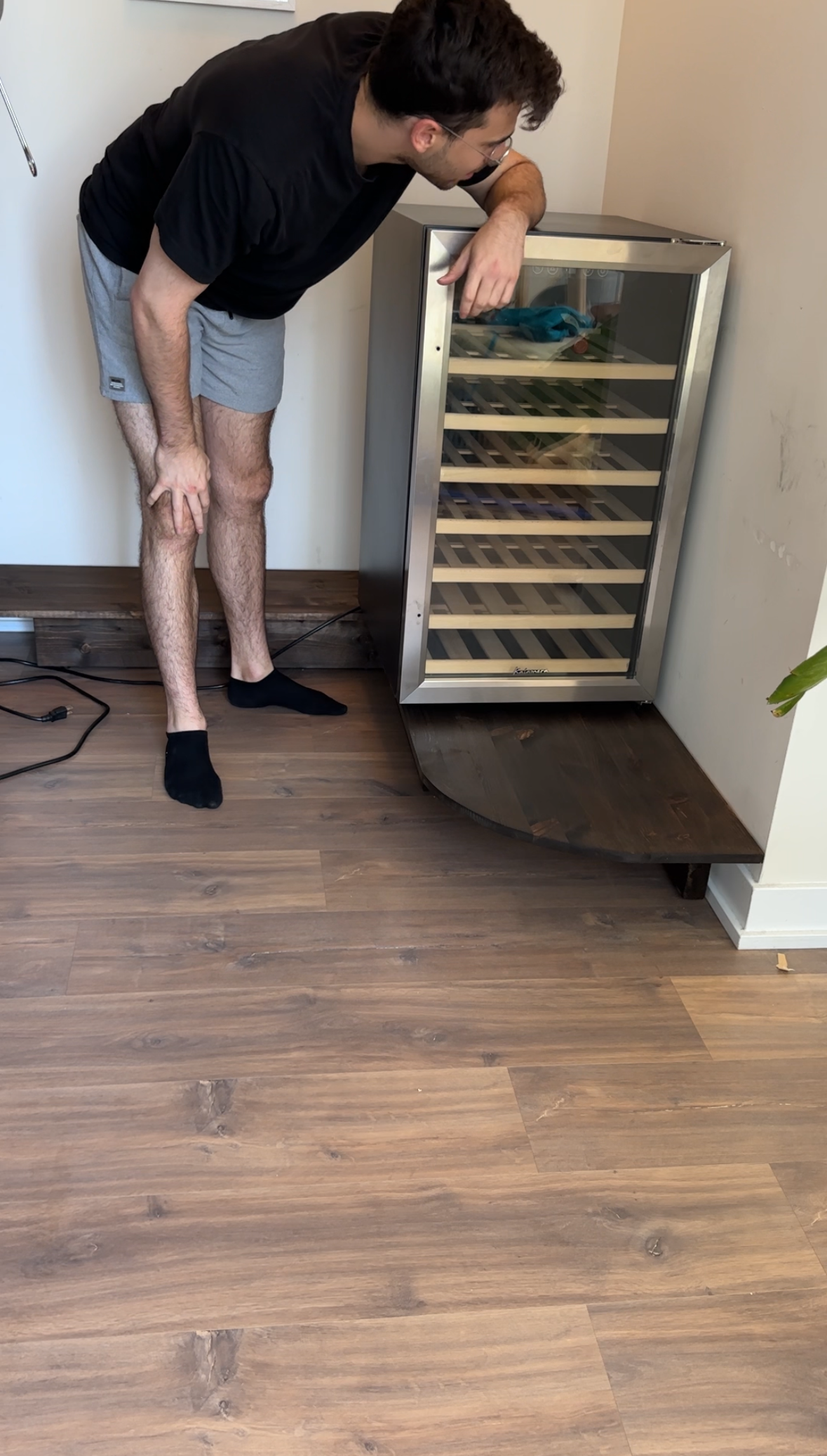

  2. Assembly step 2

    First section and wine fridge placed.

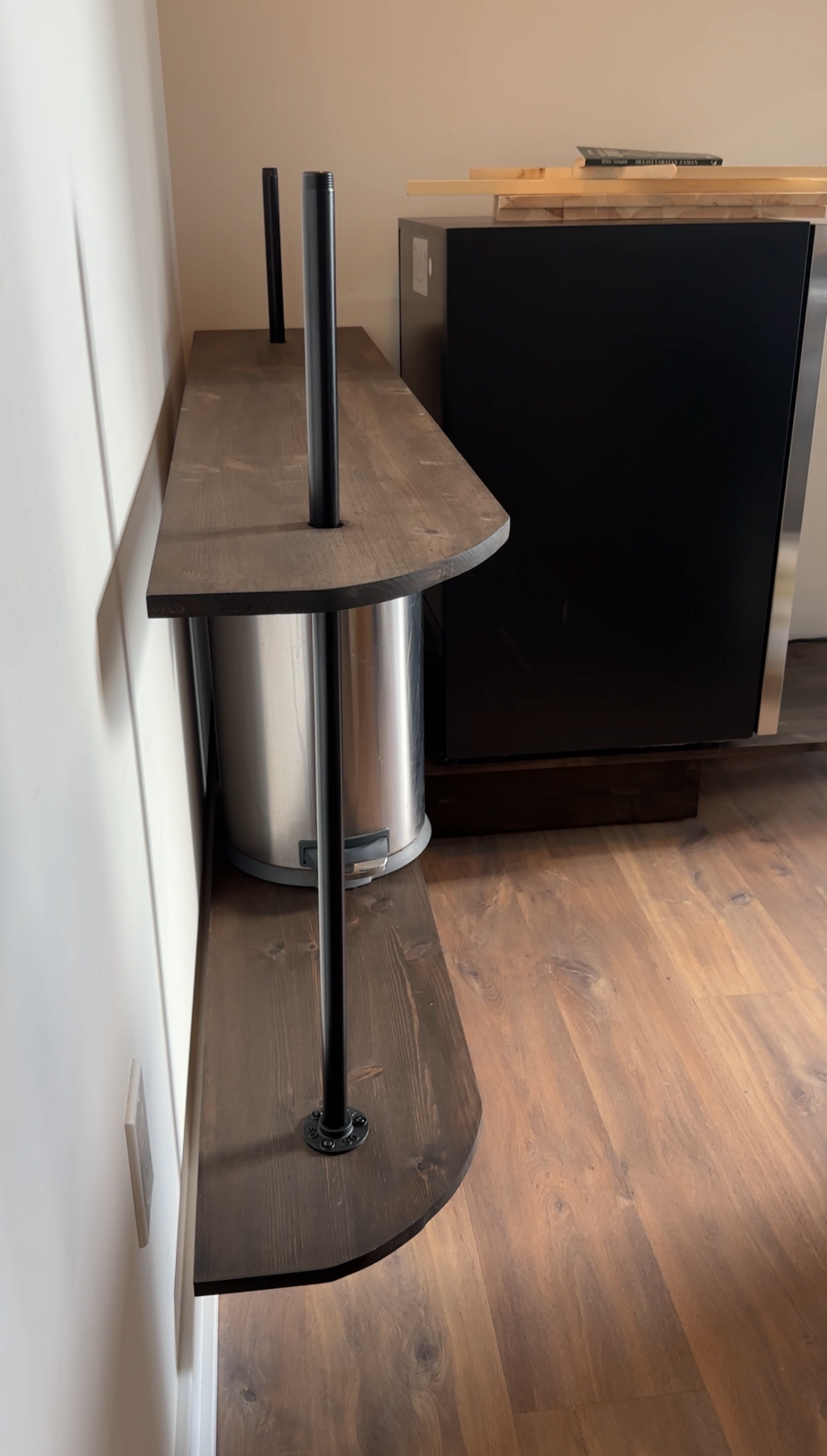

  3. Assembly step 3

    Two poles and the shelf placed.

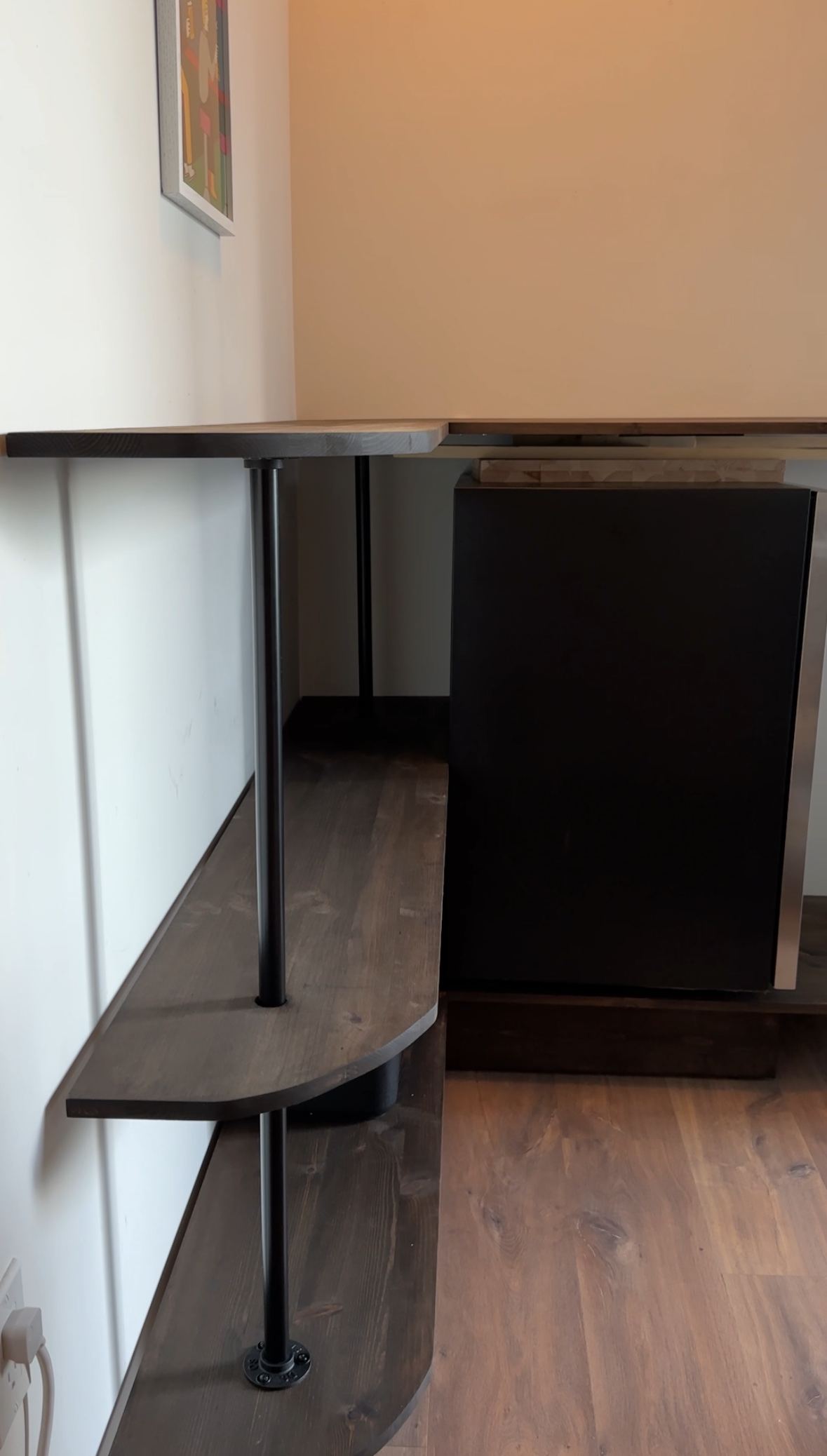

  4. Assembly step 4

    Bar surface placed.

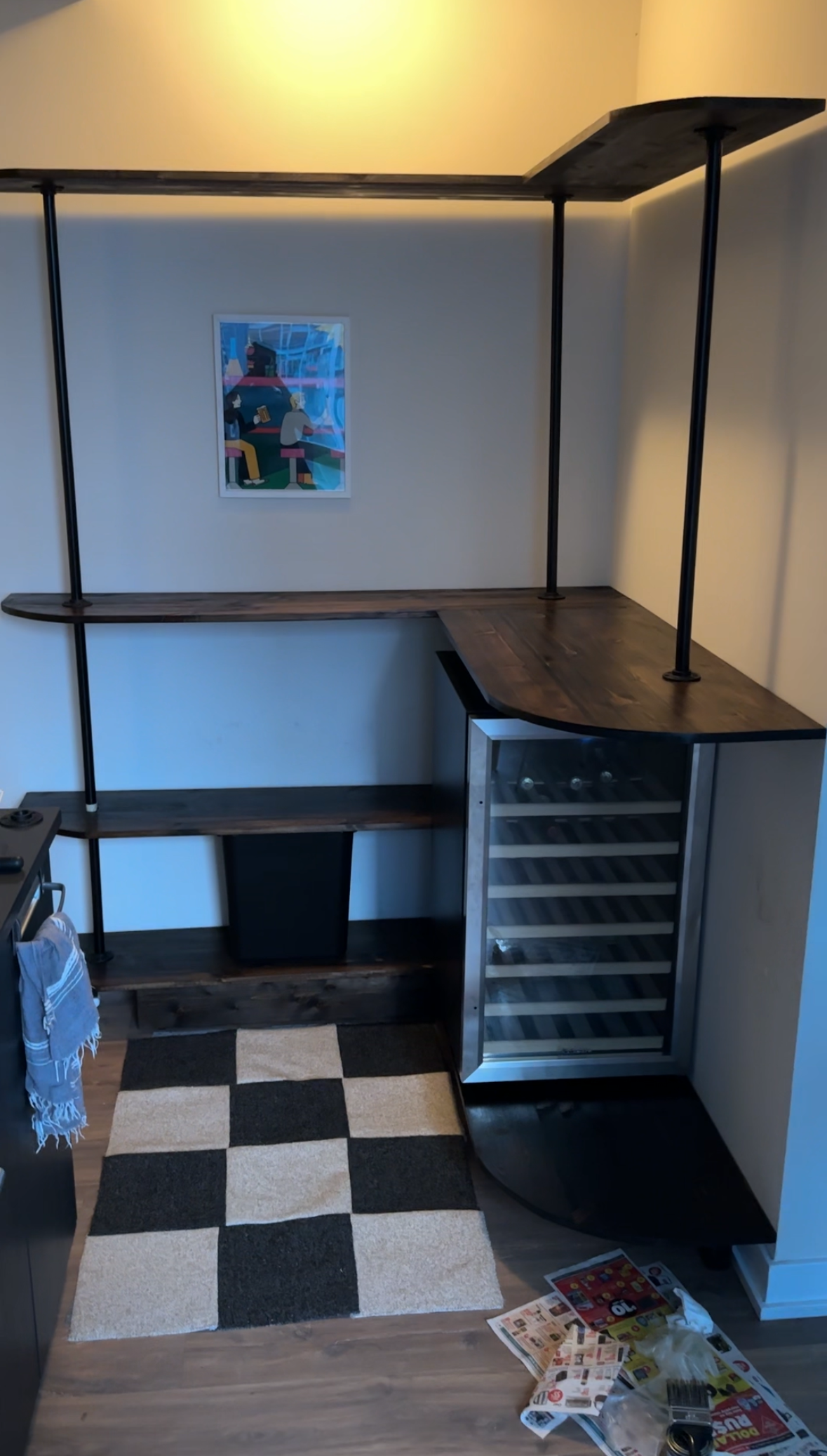

  5. Assembly step 5

    Top section placed.

Electrical

Wiring the bar

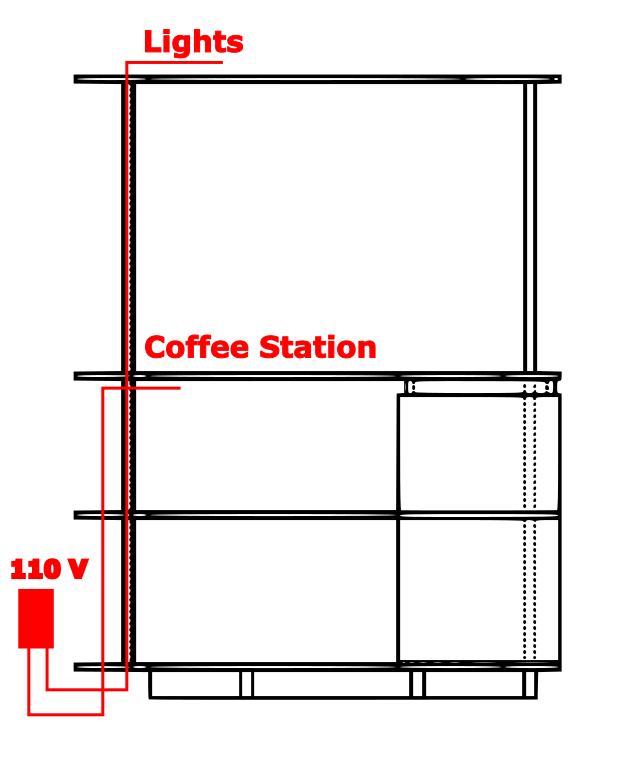

Electrical wiring inside the bar
